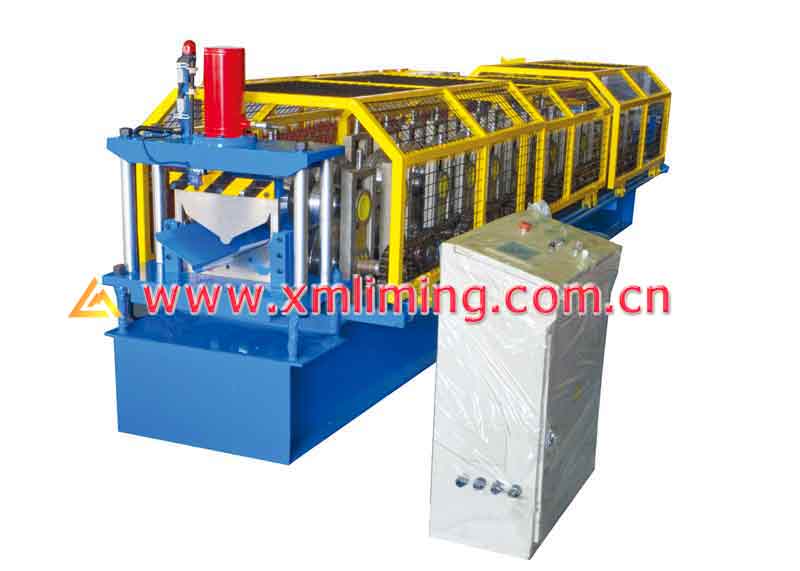

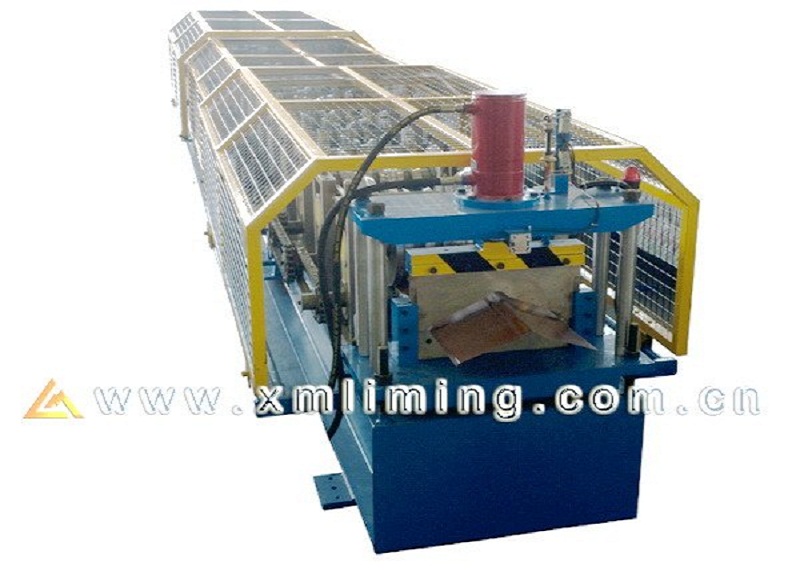

Ridge Cap Roll Forming Machine
Ridge Cap Roll Forming Machine
  • Parameter
  • Component
  • Feature
  • Payment
  • Inquiry
All details could be customized.
Operating System
Liming operating system in both Chinese and English
Frame design
Type 1 Wall-plate-frame-design
Type 2 New-stand-frame-design
Manual Pre-shearing device
Un-powered, Smart cut control, to cut off the end of the final piece of sheet only
Main motor power
7.5KW , Frequency speed control
Driven
Chain and Gear
Max. Line speed of roll former
15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power
4KW
Electric Standard
380V /50HZ/3PH or as the customer's requirements
PLC
Siemens
Touch Screen
Siemens
Inverter
Schneider
Encoder
Omron
Accessory Option:
1. Un-Coiler/De-Coiler
2. Connecting base
3. Safety switches with interlock control
4. Stacker
5. CE certificate
Please contact with sales to get much more information.







Other Profiles















Operating: Controlling carbinet with PLC and Touch Screen
Manufacture: Most Staff experienced more than 10 years
Control Hardware: Siemens
Electric Component: Schneider or same grade
Hydraulic Component: Some from China leading factories, and some from Germany
Service: Skilled engineers can fly to any country as required
Warranty: One year since leaving our factory if properly operated and maintained, electric elements excluded
Payment: 30% TT before production, 70% TT before shipping.
Packing: Load into container and fixed in container directly
Shipping: FCL by Sea
